Converting the annotations to computer vision datasets

Author

Janne Mäyrä

Published

September 4, 2025

This page contains the instructions to access the satellite data from Copernicus Data Space Ecosystem, the annotations from Zenodo and creating computer vision datasets from them. Dataset conversions are done with geo2ml.

import os, sys
from pathlib import Path
import rasterio as rio
import rasterio.plot as rioplot
import rasterio.windows as riowindow
from rasterio.windows import Window
import matplotlib.pyplot as plt
from shapely.geometry import box, Polygon
import numpy as np
import geopandas as gpd
from itertools import product
import random
sys.path.insert(1, '..')
from src.colors import *

Accessing the annotations

The manually annotated vessel data are stored in 10.5281/zenodo.10046341 as GeoPackage files. Each gpkg file corresponds to a single tile location, and each layer in a gpkg corresponds to a specific date.

The following mosaics were used as training and validation data.

Location Product name Number of annotations
Archipelago sea S2A_MSIL1C_20220515T100031_N0400_R122_T34VEM_20220515T120450 183
Archipelago sea S2B_MSIL1C_20220619T100029_N0400_R122_T34VEM_20220619T104419 519
Archipelago sea S2A_MSIL1C_20220721T095041_N0400_R079_T34VEM_20220721T115325 1518
Archipelago sea S2A_MSIL1C_20220813T095601_N0400_R122_T34VEM_20220813T120233 1371
Gulf of Finland S2B_MSIL1C_20220606T095029_N0400_R079_T35VLG_20220606T105944 277
Gulf of Finland S2B_MSIL1C_20220626T095039_N0400_R079_T35VLG_20220626T104321 1205
Gulf of Finland S2B_MSIL1C_20220703T094039_N0400_R036_T35VLG_20220703T103953 746
Gulf of Finland S2A_MSIL1C_20220721T095041_N0400_R079_T35VLG_20220721T115325 971
Bothnian Bay S2A_MSIL1C_20220627T100611_N0400_R022_T34WFT_20220627T134958 122
Bothnian Bay S2B_MSIL1C_20220712T100559_N0400_R022_T34WFT_20220712T121613 162
Bothnian Bay S2B_MSIL1C_20220828T095549_N0400_R122_T34WFT_20220828T104748 98

The following mosaics were used as test data:

Location Product name Number of annotations
Bothnian sea S2B_MSIL1C_20210714T100029_N0301_R122_T34VEN_20210714T121056 450
Bothnian sea S2B_MSIL1C_20220619T100029_N0400_R122_T34VEN_20220619T104419 66
Bothnian sea S2A_MSIL1C_20220624T100041_N0400_R122_T34VEN_20220624T120211 424
Bothnian sea S2A_MSIL1C_20220813T095601_N0400_R122_T34VEN_20220813T120233 399
Kvarken S2B_MSIL1C_20210714T100029_N0301_R122_T34VEN_20210714T121056 83
Kvarken S2B_MSIL1C_20220712T100559_N0400_R022_T34VER_20220712T121613 184
Kvarken S2A_MSIL1C_20220826T100611_N0400_R022_T34VER_20220826T135136 88

Accessing the satellite data

The easiest way to access Sentinel-2 products is with Copernicus Data Space Ecosystem (CDSE). After registering, the data can be accessed via Copernicus Browser, or through different APIs (OData, STAC).

There are two scripts that can be used to download the data through OData API. In order to use them with --creds_file argument, create a following file somewhere safe to store the credentials:

{
    "grant_type": "password",
    "username": "<your_use_email>",
    "password": "<password>",
    "client_id": "cdse-public"
}

scripts/cdse_odata.py can be used to download the full Sentinel-2 product, whereas scripts/cdse_odata_tci.py downloads only the L1C-TCI image, provided it is available. Both scripts can be used like this:

python scripts/cdse_odata.py <S2_product_name>.SAFE --creds_file <path_to_creds_file> --target_path <where_to_download>

There are some cases where the L1C-TCI is not available. It can be constructed from the full product directory like this:

import glob

SATURATION_VALUE = 3558

def make_tci_mosaic(input_safe:str, outfile:str):
    """Create a L1C-TCI mosaic from a .SAFE directory found from `input_safe`
    and save it to `outfile`
    """
    xmlroot = glob.glob(os.path.join(input, 'MTD_MSIL1C.xml'))[0]

    with rio.open(xmlroot, 'r') as src:
        data_10m = src.subdatasets[0]

    # Derive offset_value depending on the processing baseline
    baseline_ver = int(input.split('_')[-4][2:])
    if baseline_ver >= 400: RADIO_ADD_OFFSET = -1000
    else: RADIO_ADD_OFFSET = 0

    with rio.open(data_10m, 'r') as src:
        B04 = (src.read(1) + RADIO_ADD_OFFSET)/SATURATION_VALUE
        B03 = (src.read(2) + RADIO_ADD_OFFSET)/SATURATION_VALUE
        B02 = (src.read(3) + RADIO_ADD_OFFSET)/SATURATION_VALUE
        prof = src.profile

    r = np.clip(255*B04, 0, 255).astype(np.uint8)
    g = np.clip(255*B03, 0, 255).astype(np.uint8)
    b = np.clip(255*B02, 0, 255).astype(np.uint8)

    prof.update(
        count=3,
        dtype='uint8',
        driver='GTiff',
        compress='lzw',
        predictor=2,
        BIGTIFF='YES'
    )

    print('Writing data')
    with rio.open(outfile, 'w', **prof) as dst:
        dst.write(np.stack([r, g, b]))

In this example, we use the product S2A_MSIL1C_20220721T095041_N0400_R079_T34VEM_20220721T115325 to show how the data can be constructed. After registration to CDSE, download the data from either via Copernicus Browser or with

python scripts/cdse_odata_tci.py S2A_MSIL1C_20220721T095041_N0400_R079_T34VEM_20220721T115325.SAFE --creds_file <path_to_creds> --target_path <path_to_data>

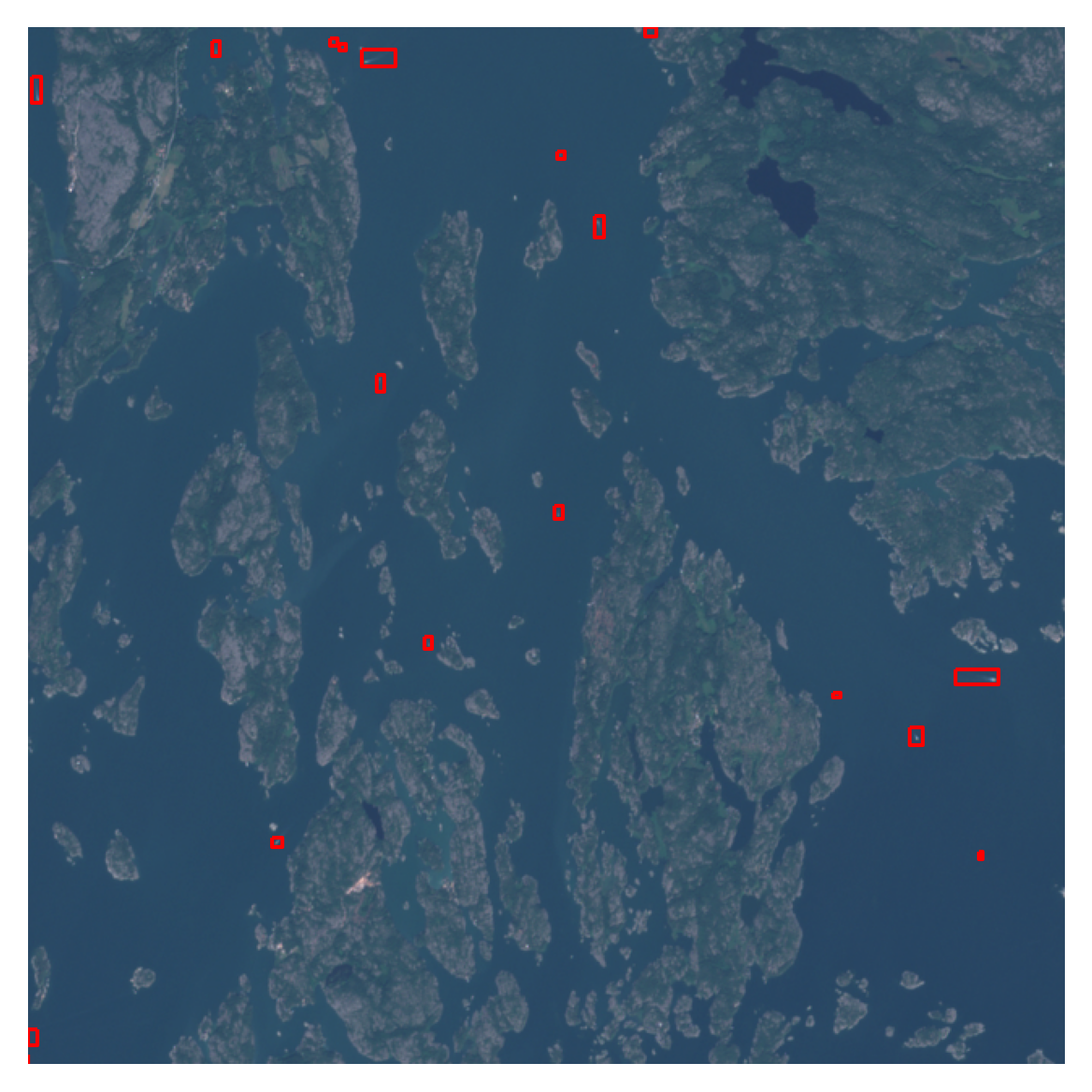

Visualizing the data

data_path = Path('../l1c_tci/mosaics/S2A_MSIL1C_20220721T095041_N0400_R079_T34VEM_20220721T115325_TCI_10m.tif')
annotations = gpd.read_file('../dataset/34VEM.gpkg', layer='20220721')
bright = 1.5 # L1C-TCI are dark in the Finnish coast so brighten them
win = Window(8000,5000,640,640)

fig, ax = plt.subplots(1,1, dpi=300)
ax.axis('off')
with rio.open(data_path) as src:
    im = src.read(window=win)
    win_transform = src.window_transform(win)
    win_bounds = riowindow.bounds(win, src.transform)
    rioplot.show((im*bright).astype(int), transform=win_transform, ax=ax, vmin=100, vmax=255)

annotations.clip(box(*win_bounds)).plot(ax=ax, facecolor='none', edgecolor='red')
plt.show()

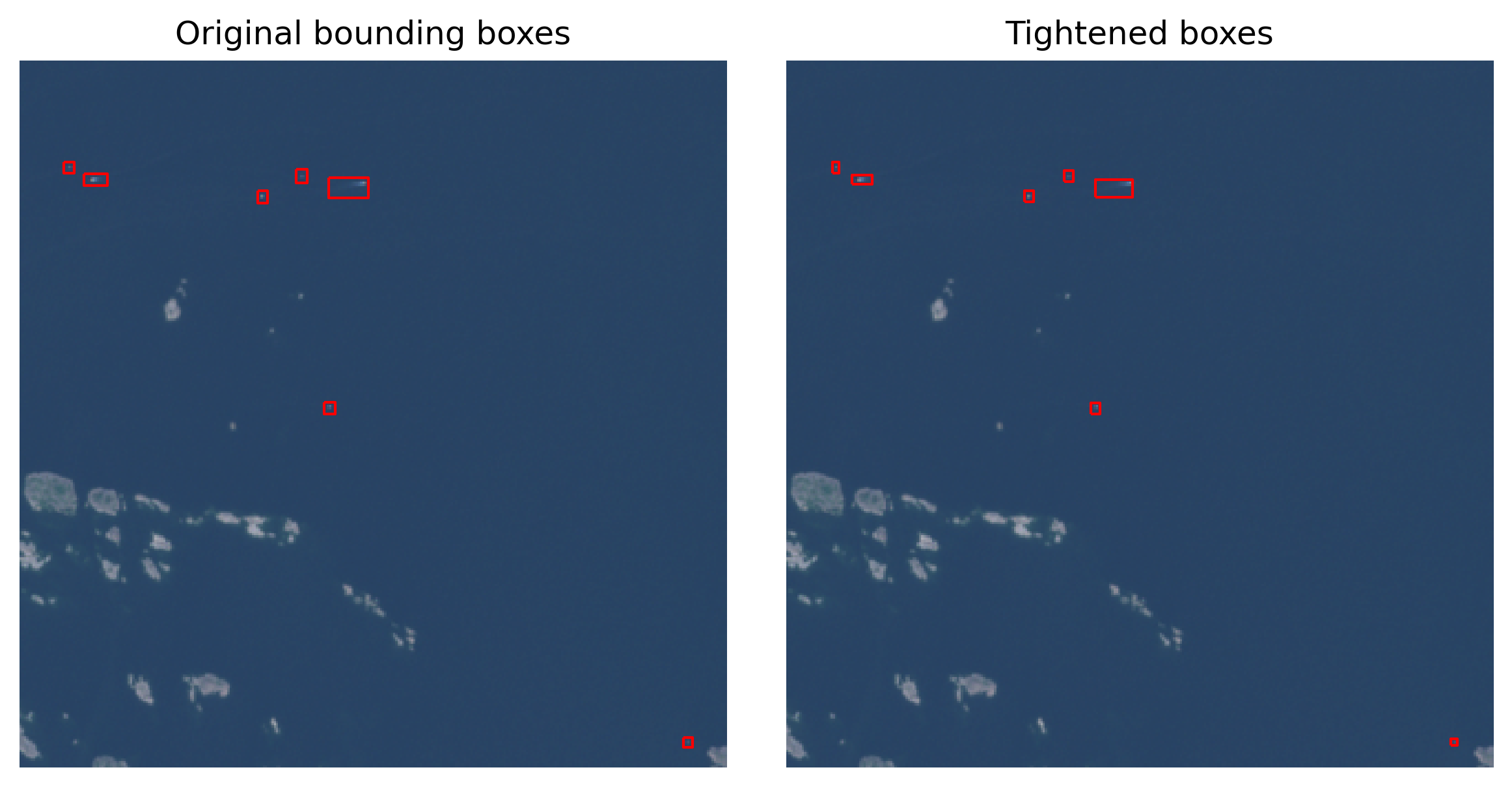

As the annotations are hand-drawn with QGis, they might not always be pixel-perfect. Typically there is a slight buffer around each side, and it can be tightened with the following function, if needed:

def edge_coords(geom):
    "Tighten the bounds to S2 pixel edges"
    xmin, ymin, xmax, ymax = geom.bounds
    # xmin rounds up
    edge_xmin = np.ceil(xmin/10) * 10
    # ymin rounds up
    edge_ymin = np.ceil(ymin/10) * 10
    # xmax rounds down
    edge_xmax = np.floor(xmax/10) * 10
    # ymax rounds down
    edge_ymax = np.floor(ymax/10) * 10
    return box(edge_xmin, edge_ymin, edge_xmax, edge_ymax)
annotations_tight = annotations.copy()
annotations_tight['geometry'] = annotations_tight.geometry.apply(edge_coords)

fig, axs = plt.subplots(1,2, figsize=(8,4), dpi=300)
win = Window(7000,6000,320,320)

for a in axs: a.axis('off')

with rio.open(data_path) as src:
    im = src.read(window=win)
    win_transform = src.window_transform(win)
    win_bounds = riowindow.bounds(win, src.transform)
    rioplot.show((im*bright).astype(int), transform=win_transform, ax=axs[0])
    rioplot.show((im*bright).astype(int), transform=win_transform, ax=axs[1])

annotations.clip(box(*win_bounds)).plot(ax=axs[0], facecolor='none', edgecolor='red')
annotations_tight.clip(box(*win_bounds)).plot(ax=axs[1], facecolor='none', edgecolor='red')
axs[0].set_title('Original bounding boxes')
axs[1].set_title('Tightened boxes')
plt.tight_layout()
plt.show()

Also, the annotations are done with different color adjustments easier for human experts to interpret, so some targets are extremely difficult to see. As computer vision models interpret the image differently, it is not that much of a problem for them.

Computer vision dataset creation

There are a couple of ways to convert the geodata to YOLO format dataset with geo2ml. The scripts create_yolo_dataset and create_coco_dataset are straightforward utility functions that

  1. Split the raster data into smaller chips
  2. Split the corresponding vector data into smaller files, each corresponding to a single chip
  3. Convert the geo-annotations into specific dataset format

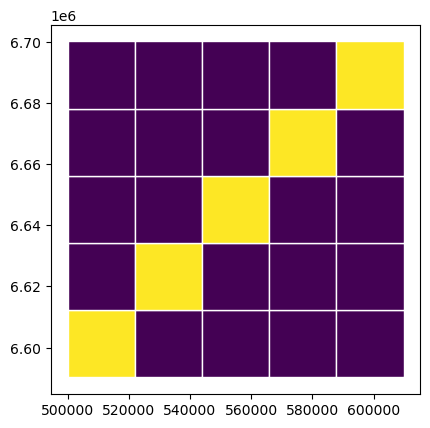

If there is a need to customize (e.g. dataset splits) the workflow, then scripts/make_yolo_data.py shows an example on how to do that. In this script, each mosaic are split into a grid, and the diagonal cells are used as validation data. Each of the train mosaics are split in this way, resulting into 80-20 spatial train-val-split.

def make_fold_grid(poly, num_edge, crs) -> gpd.GeoDataFrame:
    xmin, ymin, xmax, ymax = poly.bounds
    dx = (xmax-xmin)//num_edge
    dy = (ymax-ymin)//num_edge
    polys = []
    folds = []
    for x, y in product(range(0, num_edge), range(0, num_edge)):
        xm = xmin+x*dx
        ym = ymin+y*dy
        polys.append(box(*(xm, ym, xm+dx, ym+dy)))
        folds.append(f'fold_{(x-y)%num_edge + 1}')
    return gpd.GeoDataFrame(data={'fold': folds, 'geometry': polys}, crs=crs)

with rio.open(data_path) as src:
    bounds = src.bounds
    crs = src.crs

grid = make_fold_grid(box(*bounds), 5, crs)
grid['val'] = grid.fold.apply(lambda row: 1 if row == 'fold_1' else 0)
grid.plot(column='val', edgecolor='white')
plt.show()

YOLO conversion

from geo2ml.scripts.data import create_yolo_dataset
/home/mayrajeo/miniconda3/envs/ml-env/lib/python3.11/site-packages/tqdm/auto.py:21: TqdmWarning: IProgress not found. Please update jupyter and ipywidgets. See https://ipywidgets.readthedocs.io/en/stable/user_install.html
  from .autonotebook import tqdm as notebook_tqdm

The following creates a yolo dataset to yolo_outpath, along with the template for dataset.yaml file.

yolo_outpath = Path('example_data/yolo') # Outpath for the dataset
create_yolo_dataset(raster_path=data_path, polygon_path='../dataset/34VEM.gpkg', target_column='id',
                    outpath=yolo_outpath, save_grid=False, gridsize_x=320, gridsize_y=320,
                    ann_format='box', min_bbox_area=0, allow_partial_data=True, gpkg_layer='20220721')
1225it [01:05, 18.71it/s]
1225it [00:08, 138.54it/s]
/home/mayrajeo/miniconda3/envs/ml-env/lib/python3.11/site-packages/pyogrio/geopandas.py:265: UserWarning: More than one layer found in '34VEM.gpkg': '20220515' (default), '20220619', '20220721', '20220813'. Specify layer parameter to avoid this warning.
  result = read_func(
395it [00:22, 17.88it/s]

COCO conversion

from geo2ml.scripts.data import create_coco_dataset

The following creates a coco dataset to coco_outpath, with the complete json file containing all the information about the dataset.

coco_outpath = Path('example_data/coco') # Outpath for the dataset
create_coco_dataset(raster_path=data_path, polygon_path='../dataset/34VEM.gpkg', target_column='id',
                    outpath=coco_outpath, save_grid=False, gridsize_x=320, gridsize_y=320, dataset_name='34VEN_20220721',
                    ann_format='box', min_bbox_area=0, allow_partial_data=True, gpkg_layer='20220721')
1225it [00:56, 21.56it/s]
1225it [00:08, 141.27it/s]
/home/mayrajeo/miniconda3/envs/ml-env/lib/python3.11/site-packages/pyogrio/geopandas.py:265: UserWarning: More than one layer found in '34VEM.gpkg': '20220515' (default), '20220619', '20220721', '20220813'. Specify layer parameter to avoid this warning.
  result = read_func(
395it [00:13, 29.40it/s]

Combining with Segment-Anything

These annotations can be fed into a Segment Anything or SAM2 as prompts, and thus get more accurate instance masks instead of bounding boxes for the vessels. Here’s an example on how to do it. First import required libraries and config SAM2

import torch
from sam2.build_sam import build_sam2
from sam2.sam2_image_predictor import SAM2ImagePredictor
from geo2ml.data.coordinates import gdf_to_px, georegister_px_df

import cv2

def show_mask(mask, ax, random_color=False, borders = True):
    if random_color:
        color = np.concatenate([np.random.random(3), np.array([0.6])], axis=0)
    else:
        color = np.array([30/255, 144/255, 255/255, 0.6])
    h, w = mask.shape[-2:]
    mask = mask.astype(np.uint8)
    mask_image =  mask.reshape(h, w, 1) * color.reshape(1, 1, -1)
    if borders:
        import cv2
        contours, _ = cv2.findContours(mask,cv2.RETR_EXTERNAL, cv2.CHAIN_APPROX_NONE)
        # Try to smooth contours
        contours = [cv2.approxPolyDP(contour, epsilon=0.01, closed=True) for contour in contours]
        mask_image = cv2.drawContours(mask_image, contours, -1, (1, 1, 1, 0.5), thickness=2)
    ax.imshow(mask_image)

def show_box(box, ax):
    x0, y0 = box[0], box[1]
    w, h = box[2] - box[0], box[3] - box[1]
    ax.add_patch(plt.Rectangle((x0, y0), w, h, edgecolor='green', facecolor=(0, 0, 0, 0), lw=2))

sam2_path = Path('../../../sam2/')
checkpoint_path = sam2_path/'checkpoints'

checkpoint = checkpoint_path/'sam2.1_hiera_large.pt'
model_cfg = 'configs/sam2.1/sam2.1_hiera_l.yaml'
predictor = SAM2ImagePredictor(build_sam2(model_cfg, checkpoint))

Here, we can use the chipped image and geojson data for prompting. First select only the images with annotations. This can be done by matching the yolo label files with the images.

images_with_anns = [yolo_outpath/'images'/f'{i.replace("txt", "tif")}' for i in os.listdir(yolo_outpath/'labels')]
valid_anns =  [yolo_outpath/'vectors'/f'{i.replace("txt", "geojson")}' for i in os.listdir(yolo_outpath/'labels')]

Then we can use gdf_to_px from geo2ml to convert the georeferenced data to pixel coordinates:

im_ix = 55
ex_gdf = gpd.read_file(valid_anns[im_ix])
ex_px_gdf = gdf_to_px(ex_gdf.copy(), images_with_anns[im_ix])
ex_px_gdf.head()
id orig_area geometry image_fname
0 boat 7484.336062 POLYGON ((35.551 91.055, 41.085 91.055, 41.085... R12C17.tif
1 boat 2811.941603 POLYGON ((169.696 77.001, 174.999 77.001, 174.... R12C17.tif
2 boat 1786.034742 POLYGON ((91.346 61.083, 95.649 61.083, 95.649... R12C17.tif
3 boat 13383.448166 POLYGON ((51.844 44.79, 67.675 44.79, 67.675 5... R12C17.tif
4 boat 3146.823117 POLYGON ((49.846 32.34, 55.533 32.34, 55.533 3... R12C17.tif

Now we can prompt the SAM2ImagePredictor with bounding boxes, found on ex_px_gdf.geometry. First put the boxes into a numpy array

input_box = np.array([g.bounds for g in ex_px_gdf.geometry])

Then set image for the predictor.

with rio.open(images_with_anns[im_ix]) as src:
    im = src.read()
    im = np.moveaxis(im, (0,1,2), (2,0,1))
predictor.set_image(im)

And get the masks from predictor.

masks, scores, _ = predictor.predict(
    point_coords=None,
    point_labels=None,
    box=input_box,
    multimask_output=False
)

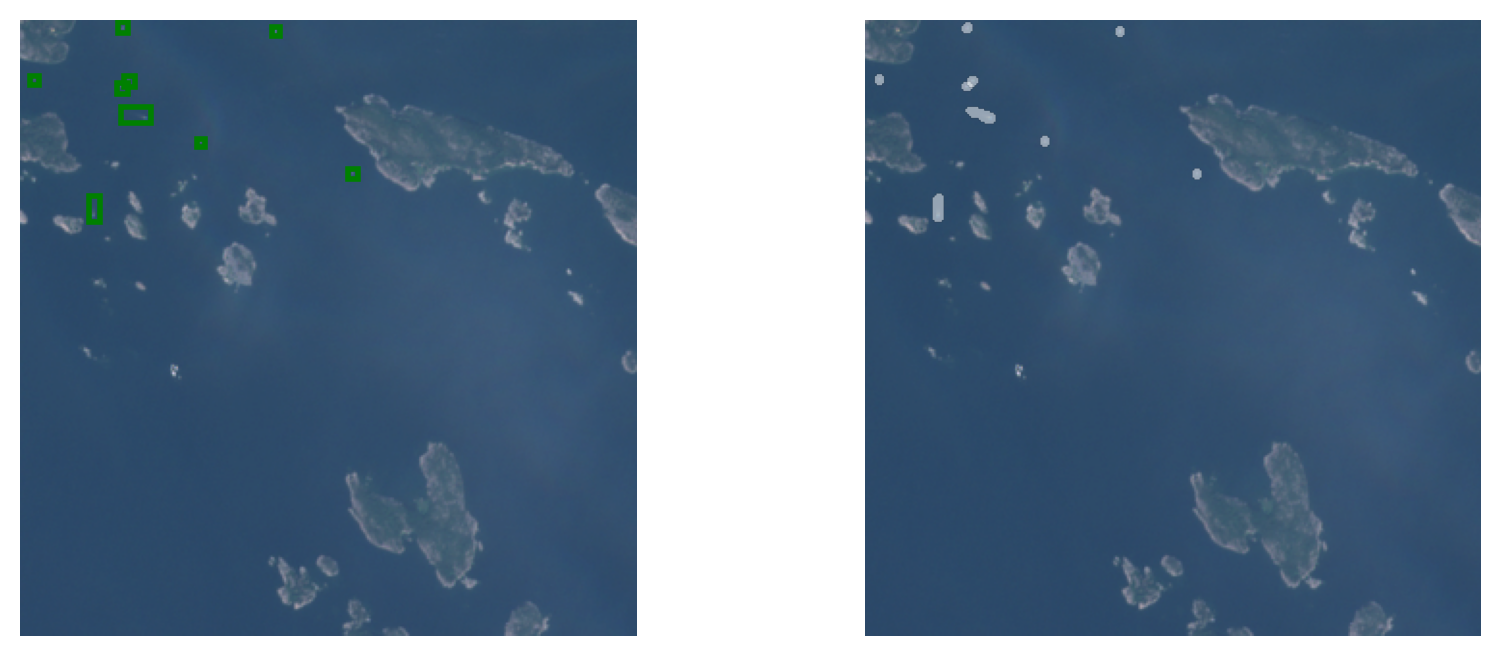

Plot the masks along with the bounding boxes.

f, a = plt.subplots(1,2, figsize=(10,4), dpi=200)
a[0].axis('off')
a[0].imshow((im*bright).astype(int))
for box in input_box: show_box(box, a[0])
a[1].axis('off')
a[1].imshow((im*bright).astype(int))
for mask in masks: show_mask(mask.squeeze(0), a[1])

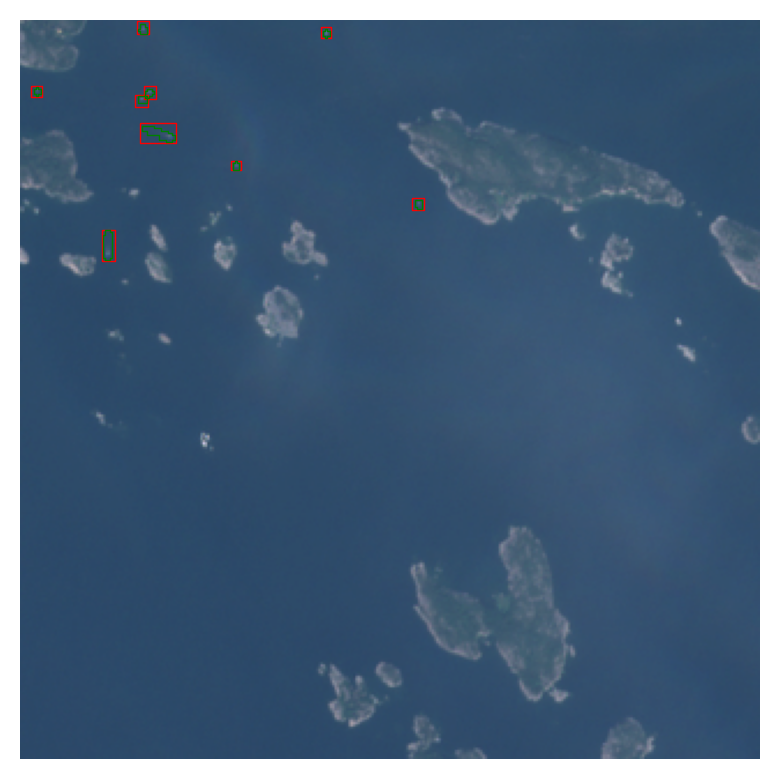

Next step is to convert the data into polygons and georeference them. rasterio.features.shapes can create proper polygons that cover all the pixels in the mask and follow the pixel edges.

from pycococreatortools.pycococreatortools import binary_mask_to_polygon

polys = []

for mask in masks:
    bmask = binary_mask_to_polygon(mask[0])
    xy_coords = [(bmask[0][i],
                  bmask[0][i+1])
                 for i in range(0,len(bmask[0]),2)]
    xy_coords.append(xy_coords[-1])
    polys.append(Polygon(xy_coords))

poly_px_gdf = ex_px_gdf.copy()
poly_px_gdf['geometry'] = polys
from rasterio.features import shapes
Polygon((list(shapes(masks[0][0].astype(np.int8)))[0][0])['coordinates'][0])

polys = []

for mask in masks:
    shape_list = list(shapes(mask[0].astype(np.int8)))
    polys.append(Polygon((list(shapes(mask[0].astype(np.int8)))[0][0])['coordinates'][0]))

poly_px_gdf = ex_px_gdf.copy()
poly_px_gdf['geometry'] = polys

Now only thing that is needed is to georeference these polygons, which can be done with georegister_px_df from geo2ml:

f, a = plt.subplots(1,1, dpi=200)
a.axis('off')
with rio.open(images_with_anns[im_ix]) as src:
    tfm = src.transform
    im = src.read()
    rioplot.show((im*bright).astype(int), transform=tfm, ax=a)

poly_gdf = georegister_px_df(poly_px_gdf.copy(), images_with_anns[im_ix])
ex_gdf.plot(facecolor='none', ax=a, edgecolor='r', linewidth=.5)
poly_gdf.plot(facecolor='none', ax=a, edgecolor='g', linewidth=.5)

Each file can then be saved to a file. You can loop through all files to create the masks for the dataset. Masks can even further be improved by clipping the masks to be within the bounding boxes. Most likely results will improve by using tightened bounding boxes.

poly_gdf.to_file(f'example_data/sam2/vectors/{valid_anns[im_ix].name}')
